【FEATURES】

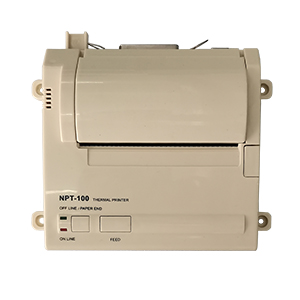

NPT-100 thermal dot line printer adopts Seiko printer head with the features of high speed, high reliability, low noise, compact sizeand easy operation. NPT-100 can be used for Navtex receiver, Inmarsat-C and other marine electronic devices.
【SPECIFICATIONS】
| Printing Method: | Thermal dot line printing |
| Printing Width: | 80 mm , 640 dot / Dot per line |
| Resolution: | 8 dots /mm |
| Printing Speed: | High or low speed |
| Printing Head Life: | 100 million pulse or more(at 25℃ and rated energy) |
| Character Matrix : | ASCII character: 16 dot wide×24 dot high, 2.00 (W)×3.00 (H) mm |
| Interface: | One serial RS232 port and one parallel port |
| AC/DC Adaptor: | Input: AC100V ~ 240V 50-60Hz, Output: DC8V±5% |
| NPS-120 DC/DC Converter (optional)： | Input: DC 24V, Output: DC 8V |
| Environmental Conditions: | Operating 0～40℃, Storage -20～ 60℃ |
| Size: | 66 (H)×180 (W)×210 (D) mm |
| Weight: | abt 0.5kg |
NSR NPT-100 THERMAL PRINTER BROCHURE.pdf
