【FEATURES】

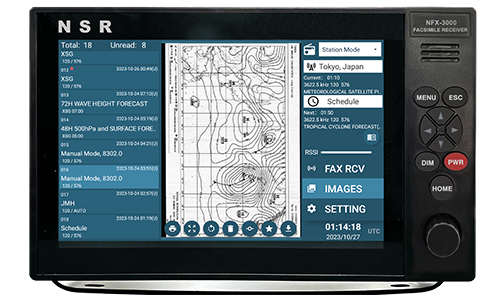

NSR’s new generation of WEATHER FAX:
- SDR (software defined radio) technology adopted.
- High receiving sensitivity with noise rejection.
- Large 10-inch color LCD, touch screen operation.
- Android O/S for easy operation.
- Large storage of up to 500 weather charts.
- Weather charts can be transferred to the computer via LAN.
- Manual Mode, Station Mode and Schedule Mode for various needs.
- Automatic operation with built-in schedule preset.
- Selected images/charts can be printed in three ways: on a printer directly connected, on a printer connected to the bridge networks and on a printer connected to a PC from USB stick, etc.
【SPECIFICATIONS】
OS: | Android |
LCD Display: | Touch screen operation |
LCD Size: | 10.1 inch |
LCD Resolution: | 1280×800 |
RAM: | 2GB |
Number of Channels: | 1000+ |
Frequency Range: | 2-25MHz |
RX Mode: | F3C |
Interface: | RS422, USB, LAN |
Scanning Speed: | 60, 90, 120, 180, 240 r.p.m., manual or automatic selection |
IOC: | 576, 288, manual or automatic selection |
Power Supply: | DC 24V ( range 9 V ~ 36 V) |
Size: | 189.8 (H) × 321.3 (W) × 100.6 (D) mm (Display Unit) |
Weight: | 2.2kg (Display Unit) |
IP Grade: | IP22: Display Unit, IP66: Antenna |
NSR NFX-3000 WEATHER FAX BROCHURE.pdf
